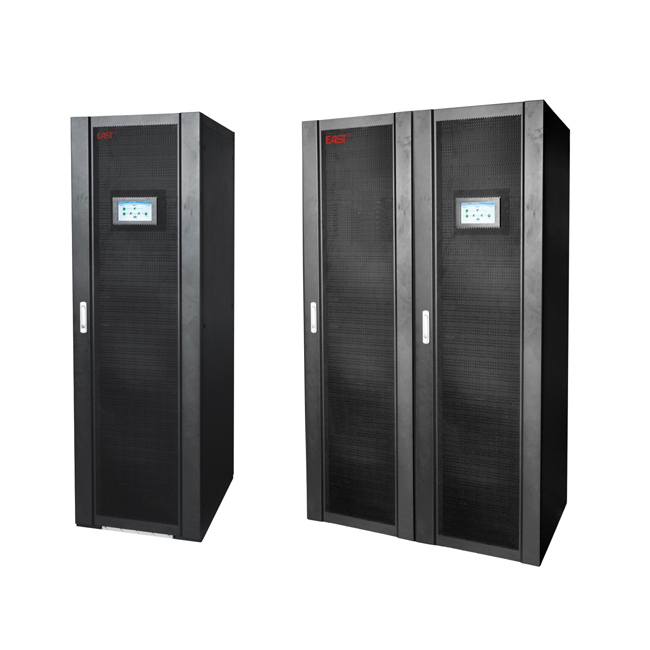

EA660 50~500KVAEA660 is the third generation of three phase high frequency on-line double-conversion modular UPS. Its single unit is extendable to 500 KVA / 450 KW, system capacity can be expanded to 2MVA constructed by each module 50KVA. All internal modules (Power module, bapass module and control module) are modularly designed and hot-swappable.
● DSP digital control technology
- Pure sine wave double conversion, with strong load capacity
- Flexible modularity and easy scalability with all hot-swappable module design
- Keep high efficiency operation at low load rate: 96% at 40% rated load and 95% at 20% rated load
- High power density of 50 KVA / 3U power module
- 300 KVA system only 0.5 m2 footprint
- Inbuilt integrated PDU system, easy installation and saving investment
- Input power factor > 0.99, THDi < 3%, environment friendly and high-efficiency and energy-saving
- Wide input voltage range, 50 Hz / 60Hz frequency anto-sense, adapt to all kind of grid
- Soft-start technology improves generator matching up to 1:1.1
- Support two modes of frequency conversion: 50 Hz input / 60 Hz output and 60 Hz / input 50 Hz output
- Intelligent hibernation design enable UPS to operate efficiently at low load rate
- Advanced parallel expansion technology, support 4 units in parallel
- Share battery pack in parallel operation, saving user’s battery cost
- Flexible charger parameter and battery configuration setting, battery number 30 ~ 46 pcs selectable
- Intelligent battery management (Intelligent charge/discharge management and float charging voltage temperature compensation), extending battery lifespan
- Support battery cold start and utility self boot
- Self-aging function, easy debugging and test on site
- Fault-tolerant design for fan system: 30% load can be driven when 2 fans fail and 50% load when 1 fan fails
- Front accessible maintenance, top/bottom cable entry compatible
- Complete hardware and software protection function, robust self-diagnostic function, and abundant event log for check
- 7 inches LCD touch screen, friendly human-machine interface
- Monitoring unit with built-in SNMP, supports RS485 and dry contacts
|
MODEL |
EA66200 |
EA66300 |
EA66400 |
EA66500 |
|
Rated capacity |
200 KVA |
300 KVA |
400 KVA |
500 KVA |
|
Numbers of power modules |
4 |
6 |
8 |
10 |
|
Rated capacity of power module |
50 KVA |
|||
| INPUT | ||||
|
Input wiring |
3Ph + N + PE |
|||
|
Rated voltage |
380 / 400 / 415 Vac |
|||
|
Voltage range |
138 ~ 485 Vac (305 ~ 485 Vac without power downgrading; |
|||
|
Input frequency |
40 ~ 70 Hz |
|||
|
Power factor |
≥ 0.99 |
|||
|
Total harmonic distortion |
THDi < 3% (liner load); THDi < 5%(non-liner load) |
|||
| BATTERIES | ||||
|
Battery voltage |
± 192 Vdc (±180, ± 192, ± 204, ± 216, ± 228, ± 240, ± 252, ± 264, ± 276 selectable) |
|||
|
Number of battery |
32 pcs 12 V batteries ( supports 30 / 32 / 34 / 36 / 38 / 40 / 42 / 44 / 46 pcs) |
|||
| OUTPUT | ||||
|
Output wiring |
3Ph + N + PE |
|||
|
Rated voltage |
380 / 400 / 415 Vac ±1% |
|||
|
Frequency |
Synchronized with utility on mains power mode: |
|||
|
Power factor |
0.9 |
|||
|
THDi |
≤ 1% (liner load); ≤ 3% (non-linear load) |
|||
|
Crest factor |
3:1 |
|||
|
Inverter overload capacity |
105% < load ≤ 110%: transfer to bypass mode in 60 mins |
|||
|
Bypass overload capacity |
Load ≤135% for long term; < 1000% load for 100 ms |
|||
| SYSTEM | ||||
|
Efficiency |
96 % |
|||
|
Max. number of parallel |
4 units |
|||
|
Transfer time |
0 ms |
|||
|
Protection |
Short circuit protection, overload protection, over-temperature protection, battery low voltage protection, output over/low voltage protection, fans failure protection etc. |
|||
|
Communications |
RS485, dry contacts, SNMP |
|||
|
Display |
7 inches LCD touch screen |
|||
| OTHERS | ||||
|
Operating temperature |
0 ~ 40℃ |
|||
|
Storage temperature |
– 40℃ ~ 70℃ |
|||
|
Humidity |
0 ~ 95% (non-condensing) |
|||
|
Altitude |
≤1000m. Above 1000m, derating 1% for each additional 100 m |
|||
|
Protection level |
IP20 |
|||
|
Noise |
< 65 dB |
< 68 dB |
< 70 dB |
|
|
Cabinet dimensions (WxDxH) (mm) |
600 × 850 × 2000 |
1200 × 850 × 2000 |
||
|
Weight (kg) |
227 ~ 350 |
253 ~ 430 |
693 ~ 880 |
693 ~ 940 |
