Leírás
1. 16 Channels
2. 50 Groups CTCSS, 104 Groups DCS
3. VOX Functioin
4. Busy Channel Lockout
5. Li-Ion Battery 1300mAh/1800mAh
6. Voice Guide
7. Channel Scan and Priority Scan
8. PC Programming
9. Wire Clone Function
10. Auto Battery Save
11. Time Out Timer(TOT)
12. Wide/Narrow Bandwidth Selective(25KHz/12.5KHz)

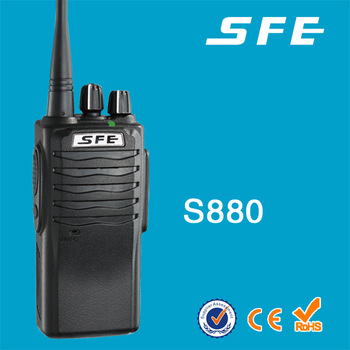

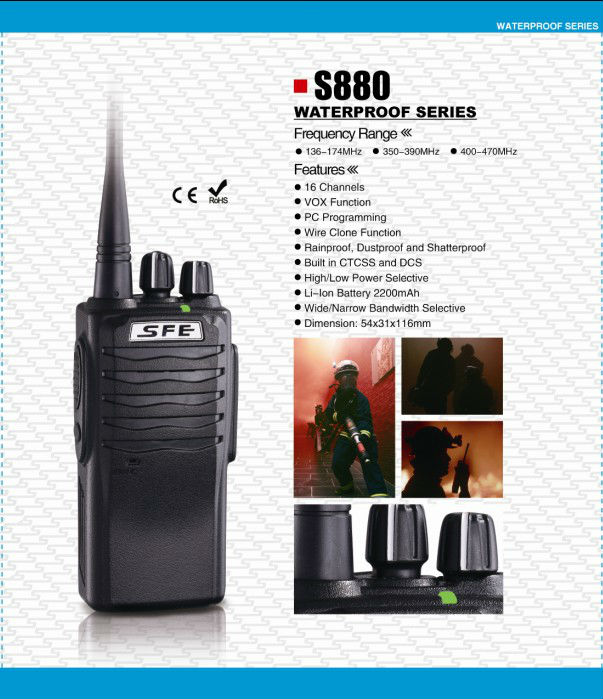

| S880 TWO WAY RADIO | |
| Frequency Range | 136-174MHz / 400-470MHz |
| Channel Capacity | 16CH |
| Channel Spacing | 25/12.5KHz |
| Operating Voltage | DC:7.2V |
| Battery Capacity | 1300mAh/1800mAh(Li-Ion) |
| Battery Life | About 11-17 Hours |
| Operating Temperature | -30°C~ +60°C |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50Ω |
| Dimension | 54*31*116mm |
| Weight | 220g |
|
Transmitter |
|
|
Frequency Error |
≤ 5 X 10-6 |
|
RF Power Output |
≤5W |
|
Modulation Limiting |
≤ 5KHz |
|
Spurious Emission |
≥65dB |
|
Modulation Distortion |
Less Than 5% |
|
Receiver |
|
|
Sensitivity |
0.2μV |
|
Audio Distortion |
≤ 5% |
|
Spurious Response Rejection |
≥ 55dB |
|
Adjacent Channel Selectivity |
≥ 55dB |
|
Inter-modulation |
≥ 55dB |
|
Audio Output |
≥ 250mW |
