Specification
| MODEL | EP20-300W | EP20-500W | EP20-600W | EP20-800W | EP20-1KW | |
|---|---|---|---|---|---|---|
| Default Battery System Voltage | 12VDC | 12VDC/24VDC | 12VDC/24VDC | 12VDC/24VDC | ||
| INVERTER OUTPUT |
Reted Power | 300W | 500W | 600W | 800W | 1000W |
| Waveform | Pure sine wave | |||||
| Nominal Output Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC(±10% RMS) | |||||
| Output Frequency | 5OHz/60Hz±0.3 Hz | |||||
| Inverter Efficiency(Peak) | >80% | |||||
| Line Mode Efficiency | >95% | |||||
| Power Factor | 1.0 | |||||
| Typical Transfer Time | Typical 2~6ms ,10ms max | |||||
| AC INPUT |
Voltage | 220VAC | ||||
| Selectable Voltage Range | 96~132VAC 145~275VAC(For Personal Computers) | |||||
| Frequency Range | 50Hz/60Hz (Auto sensing 44~68Hz) | |||||
| BATTERY | Nominal Input Voltage | 12VDC | 12VDC/24VDC | 12VDC/24VDC | 12VDC/24VDC | |
| Minimum Start Voltage | 10.5VDC /21.0VDC | |||||
| Low Battery Alarm | 10.5±0.3V /21.0VDC±0.6V | |||||
| Low Battery Cutoff | 10.0VDC±0.3V /20.0VDC±0.6V | |||||
| High Voltage Alarm | 15.5VDC±0.3V /31.0VDC±0.6V | |||||
| High Battery Voltage Recover | 15.0VDC±0.3V /30.0VDC±0.6V | |||||
| CHARGER | Charger Voltage | 14.0V±0.2/28.0V±0.4 | ||||
| Overcharge Protection S.D. | 15.5VDC/31.0VDC | |||||
| Maximum Charge Current | 15A~25A | |||||
| BYPASS & PROTECTION |
Nominal Input Frequency | 50Hz or 60Hz | ||||
| Overload Protection (SMPS Load) | IPS automatically shutdown if overload exceeds 120% ofnormal value for 30 seconds IPS automatically resume work if overload comes back to rated load |
|||||
| Output Short Circuit Protection | FUSE | |||||
| Bypass Breaker Rating | 10A | |||||
| Max Bypass Current | 10Amp | |||||
| MECHANICAL SPECIFICATIONS |
Dimensions (W*H*D) | 265*120*295mm | ||||
| Net Weight (kg) | 7.0kg | 9.5Kg | 10.5kg | 12kg | 12.5kg | |
| Shipping Dimensions(W*H*D) | 316*185*377mm | |||||
| Shipping Weight (kg) | 7.5kg | 10Kg | 11kg | 12.5kg | 13kg | |
| OTHER | Operation Temperature Range | 0°C to 40°C | ||||
| Audible Noise | 60dB MAX | |||||

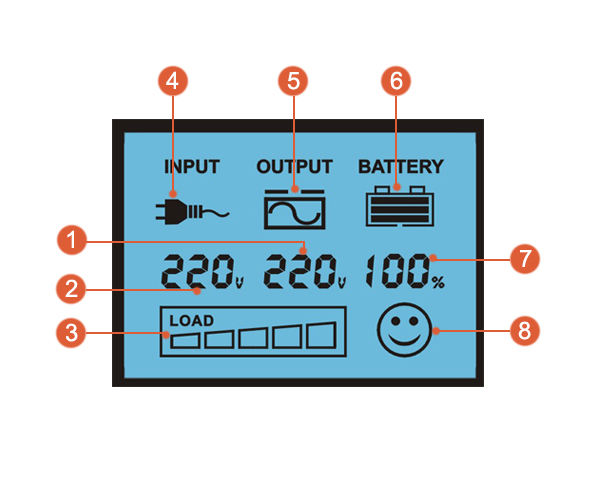

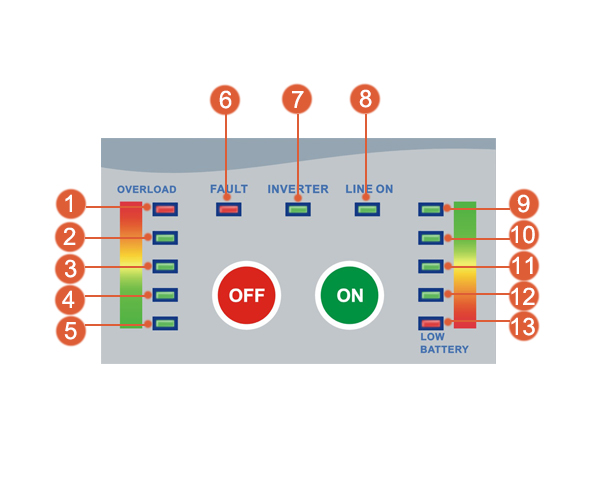

| Display | LED or LCD Optional | |||||
