● Adopt high-performance ARM chip, with high stability and operation control capabilities combined with powerful computing system resources which makes this product more stable and reliable
● Human-machine interaction interface with high-performance ARM chips and 4-inch true color touch screen, user-friendly design and easy operation
● With short-circuit, overcurrent, electric leakage, overvoltage, undervoltage protections.
● With one-step stamping forming, the operation panel is beautiful and durable
● Electricity bill measurement and card reading function: support charging mode and billing based on amount of money, amount of electricity and automatic full charging etc; support multi-rate setting, which can set up different rate in different times, with maximum 8 rates
● With rainproof, dustproof design and protection IP54, meets outdoor operation requirements
|
MODEL |
EVAC-SW-B-7KVA-2210 |
EVAC-SW-S-7KVA-2210 |
EVAC-TW-S-21KVA-2210 |
EVAC-TW-S-42KVA-2210 |
|
INPUT / OUTPUT |
||||
|
Voltage |
220 Vac (single phase three wire) |
380 Vac (three phase five wire) |
||
|
Current |
32 A |
32 A |
32 A |
63 A |
|
Capacity |
7 KVA |
7 KVA |
21 KVA |
42 KVA |
|
Frequency |
45 Hz ~ 65 Hz |
|||
|
Noise |
< 55 dB |
|||
|
PROTECTIONS |
||||
|
Short-circuit protection |
Non-restorable (require manual restoring) |
|||
|
Overvoltage protection |
No output after protection; self-restorable |
|||
|
Undervoltage protection |
No output after protection; self-restorable |
|||
|
Leakage protection |
Non-restorable (require manual restoring) |
|||
|
HUMAN–MACHINE INTERACTION INTERFACE |
||||
|
Monochrome screen |
Support 5’ monochrome screen (standard configuration) |
|||
|
LED indicator |
Available (standard configuration) |
|||
|
Keyboard |
16 bits touch keyboard (standard configuration) |
|||
|
Swipe card reader |
Contactless swipe card reader (standard configuration) |
|||
|
APP operation |
Available (standard configuration) |
|||
|
Charging plug number |
1 |
|||
|
Charging cable length |
3 m |
|||
|
GB/T 18487.1-2015, GB/T 20234.1-2015, GB/T 20234.2-2015, NB/T 33002-2010, NB/T 33008.2-2013 |
||||
|
OTHERS |
||||
|
Operating temperature |
-20℃ ~ + 50℃ |
|||
|
Storage temperature |
-40℃ ~ + 80℃ |
|||
|
Relative humidity |
||||
|
70 kPa ~ 106 kPa |
||||
|
IP rating |
IP54 |
|||
|
Dimensions (H × W × D) (mm) |

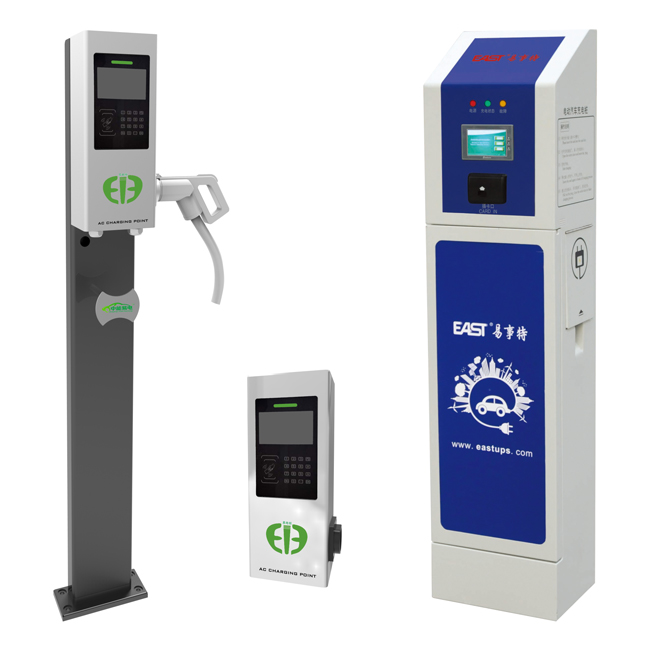

420 × 175 × 120 (wall-mounted unit) |
|||
|
Dimensions (H × W × D) (mm) |
1460 × 175 × 50 (floor rack) |
|||
|
Dimensions (H × W × D) (mm) |
1485 × 346 × 426 ( vertical type) |
|||
|
Weight (kg) |
≤ 50 |
|||
