| Outdoor All-In-One Electric Vehicles Charger |

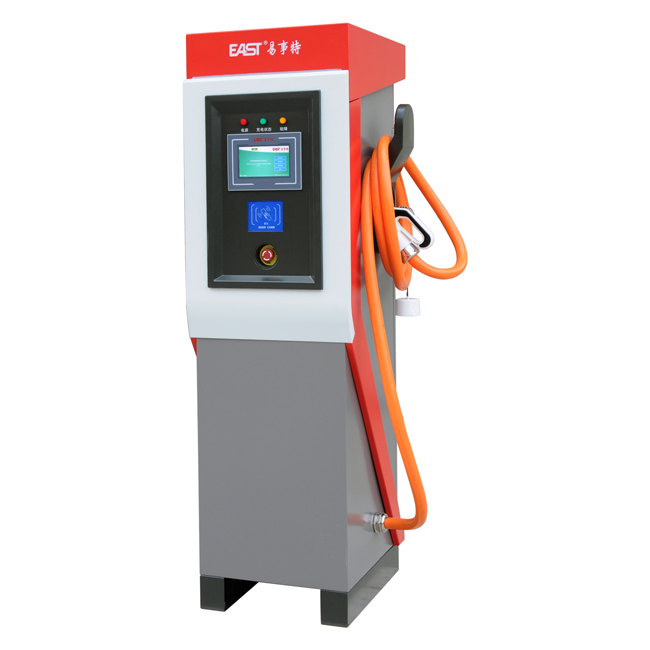

| Outdoor All-In-One electric vehicles charger is used for electric vehicle charging power supply of distributed charging network. It can deploy charging network rapidly and effectively, providing high-power charging service for electric vehicles. It consists of integrated charger and charging connector. It is applicable to charging stations and enterprises’ parking lot etc. |
● Comply with the latest standard of NB/T 33008.1-2013 and GB/T 27930-2015, GB/T 18487.1-2015, and passed the highest harsh classification test.
● Selectable multi-manner, single gun charging function, dual-gun charging function, dual-gun synchronous charging function and power distribution function.
● High power density, high efficiency, high power factor, lowest THDI, no need extra reactive power compensation and harmonic suppression equipment.
● Modular design with hot-swap function, convenient maintenance, no power-off during maintenance.
● Superior protection features such as input / output over/under voltage protection, short-circuit protection, reverse- polarity protection, and automatic test of insulation fault etc.
● Support remote communication control for the charger via PC and APP. se- polarity protection, and automatic test of insulation fault etc.
|
MODEL |
EVDC-30KW-5YHW-1 |
EVDC-60KW-5YHW-1 |
EVDC-60KW-5YHW-2T |
EVDC-60KW-5YHW-2L |
EVDC-90KW-5YHW-2T |
EVDC-90KW-5YHW-2L |
| INPUT | ||||||
|
Input voltage |
260 V ~ 456 V (three phase five wire) |
|||||
|
Input current |
≤ 55 |
≤ 160 |
||||
|
AC input frequency |
45 Hz ~ 65 Hz |
|||||
|
Efficiency |
≥ 95% |
|||||
|
Power factor |
≥ 0.99 |
|||||
|
Input THD |
≤ 5% |
|||||
| OUTPUT | ||||||
|
Output voltage range |
500 Vdc series: 200 V ~ 500 V |
|||||
|
Rated output current (500 V) |
60 A |
120 A |
180 A |
|||
|
Rated output current (700 V) |
40 A |
80 A |
120 A |
|||
|
Max. output current (500 V) |
72 A |
144 A |
216 A |
|||
|
Max. output current (700V) |
48 A |
96 A |
144 A |
|||
|
Soft start time |
3 s ~ 8 s |
|||||
|
Output constant-current range |
10% ~ 100% |
|||||
|
Voltage regulation accuracy |
≤ ± 0.2% |
|||||
|
Current regulation accuracy |
≤ ± 0.5% |
|||||
|
Ripple coefficient (peak value) |
≤ 1% |
|||||
|
Current-sharing unbalanced degree |
≤ ±3% (50% ~ 100% rated load) |
|||||
|
Noise |
< 65 dB |
|||||
| PROTECTIONS | ||||||
|
Output short-circuit protection |
Retraction current ≤ 40% Io; auto-restorable |
|||||
|
Output overvoltage protection |
No output after protection; |
|||||
|
Input over / under voltage protection |
No output after protection; auto-restorable |
|||||
|
Phase-lack protection |
No output after protection; auto-restorable |
|||||
|
Overtemperature protection |
No output after protection; auto-restorable |
|||||
| CHARGING CONFIGURATION AND STANDARD | ||||||
|
Charging plug number |
1 |
2 |
||||
|
Charging cable length |
5 m |
|||||
|
Communication protocol standard |
GB/T 27930-2015 |
|||||
|
Charger standard |
GB/T 18487.1-2015, GB/T 20234.1-2015, GB/T 20234.3-2015, NB/T 33001-2010, NB/T 33008.1-2013 |
|||||
| OTHERS | ||||||
|
Operating temperature |
-20℃ ~ + 50℃ |
|||||
|
Storage temperature |
-40℃ ~ + 80℃ |
|||||
|
Relative humidity |
≤ 95% |
|||||
|
70 kPa ~ 106 kPa |
||||||
|
IP rating |
IP54 |
|||||
|
Dimensions (H × W × D) (mm) |
1700 × 500 × 500 |
|||||
|
Weight (kg) |
≤ 200 |
≤ 300 |
||||
