Leírás

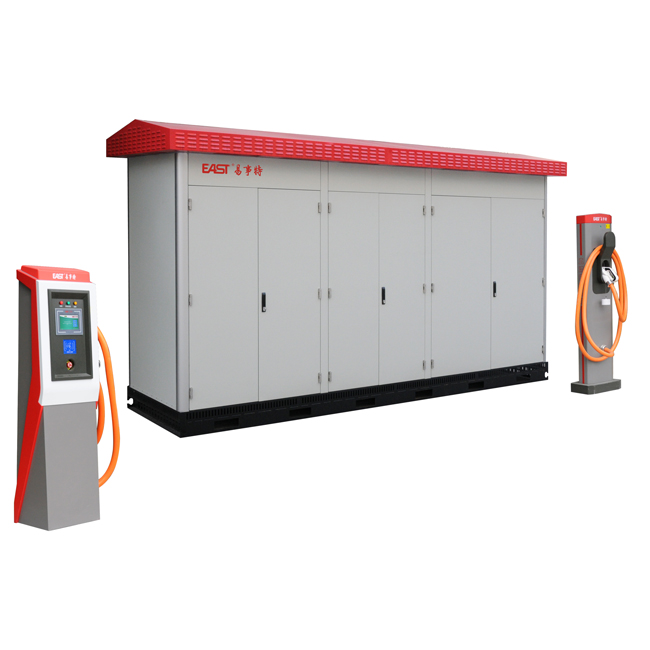

● Outdoor chamber design makes convenient and quick deployment.
● Its internal modular design meets different capacity requirement, and rectifier modules with three-phase active APFC dynamic regulation module having excellent airduct design, and realizes integrated protection for rectification, control, output and measurement etc.
● Superior protection includes AC overvoltage / under voltage, output overvoltage / undervoltage, overcurrent, short-circuit, overtemperature, overload, reverse-battery, inrush current surge protections etc.
|
MODEL |
EVXG-900 |
EVXG-1900 |
EVXG-3100 |
EVXG-4300 |
|
INPUT |
||||
|
Input voltage |
260 V ~ 456 V (three phase five wire) |
|||
|
Input current |
≤ 250 A |
≤ 500 A |
≤ 700 A |
≤ 1500 A |
|
AC Input frequency |
45 Hz ~ 65 Hz |
|||
|
Efficiency |
≥ 95% |
|||
|
Power factor |
≥ 0.99 |
|||
|
Input THD |
≤ 5% |
|||
|
OUTPUT |
||||
|
Output power |
1 × 150 KW |
2 × 150 KW |
4 × 150 KW |
6 × 150 KW |
|
Number of charger |
1 |
2 |
4 |
6 |
|
Soft start time |
3 s ~ 8 s |
|
||
|
Output constant-current range |
10% ~ 100% |
|||
|
Voltage regulation accuracy |
≤ ± 0.2% |
|||
|
Current regulation accuracy |
≤ ± 0.5% |
|||
|
Ripple coefficient (peak value) |
≤ 1% |
|||
|
Current-sharing unbalanced degree |
≤ ± 3% (50% ~ 100% rated load) |
|||
|
Noise |
< 55 dB |
|||
|
PROTECTIONS |
||||
|
Output short-circuit protection |
Retraction current ≤ 40% Io; auto-restorable |
|||
|
Output overvoltage protection |
No output after protection; |
|||
|
Input over/under voltage protection |
No output after protection; auto-restorable |
|||
|
Phase-lack protection |
No output after protection; auto-restorable |
|||
|
Overtemperature protection |
No output after protection; auto-restorable |
|||
|
CHARGING CONFIGURATION AND STANDARD |
||||
|
Charging plug number |
1 |
4 |
8 |
12 |
|
Charging cable length |
5 m |
|||
|
Communication protocol standard |
GB/T 27930-2015 |
|||
|
Charger standard |
GB/T 18487.1-2015, GB/T 20234.1-2015, GB/T 20234.3-2015, NB/T 33001-2010, NB/T 33008.1-2013 |
|||
|
OTHERS |
||||
|
Operating temperature |
-20℃ ~ + 50℃ |
|||
|
Storage temperature |
-40℃ ~ + 80℃ |
|||
|
Relative humidity |
≤ 95% |
|||
|
Atmospheric pressure |
70 kPa ~ 106 kPa |
|||
|
IP rating |
IP54 |
|||
|
Dimensions (H × W × D) (mm) |
2400 × 900 × 1100 |
2400 × 3100 × 1100 |
2400 × 4300 × 1100 |
|
|
Weight (kg) |
≤ 500 |
≤ 1650 |
≤ 2350 |
|
