1. 256 Channels(UHF & VHF)
2. Operation Mode: UU, UV, VV
3. Power Output: 5W/2W/0.5W
4. CTCSS/DCS/DTMF 2TONE/5TONE Encode & Decode
5. Channel Steps: 2.5/5/6.25/10/12.5/15/20/25/30/50KHz
6. Frequency Scan + Channel Scan + Dual Standby + CTCSS/DCS Scan
7. Wide/Narrow Bandwidth 25KHz/20KHz/12.5KHz (Selective)
8. VOX Function (10 levels)
9. ANI Code (DTMF/2Tone/5Tone) and PTT ID
10. FM Radio 76-108MHz
11. End-tone Elimination
12. Dimension: 53x28x104mm

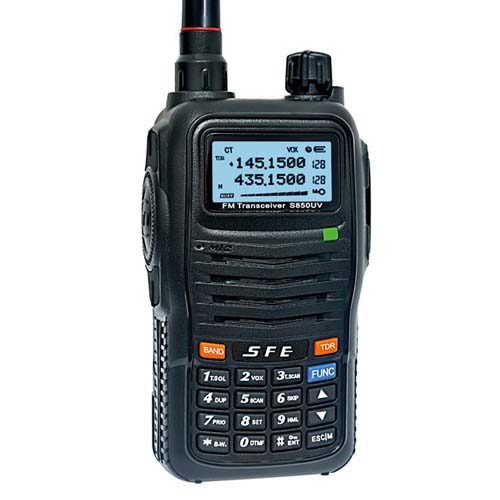

| S850UV TWO WAY RADIO | |
| Frequency Range | 136-174/400-470MHz |
| Channel Capacity | VHF128/UHF128 |
| Channel Spacing | 12.5/20/25KHz |
| Operating Voltage | 7.4V DC |
| Battery Capacity | 1800mAh(Li-Ion) |
| Battery Life | About 17 hours |
| Operating Temperature | -30°C~ +60°C |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50Ω |
| Dimension | 53*28*104mm |
| Weight | 236g |
|
Transmitter |
|
|
Frequency Error |
≤ 5 X 10-6 |
|
RF Power Output |
≤5W |
|
Modulation Limiting |
≤ 5KHz |
|
Spurious Emission |
≥65dB |
|
Modulation Distortion |
Less Than 5% |
|
Receiver |
|
|
Sensitivity |
0.25μV |
|
Audio Distortion |
≤ 5% |
|
Spurious Response Rejection |
≥ 55dB |
|
Adjacent Channel Selectivity |
≥ 55dB |
|
Inter-modulation |
≥ 55dB |
|
Audio Output |
≥ 250mW |
